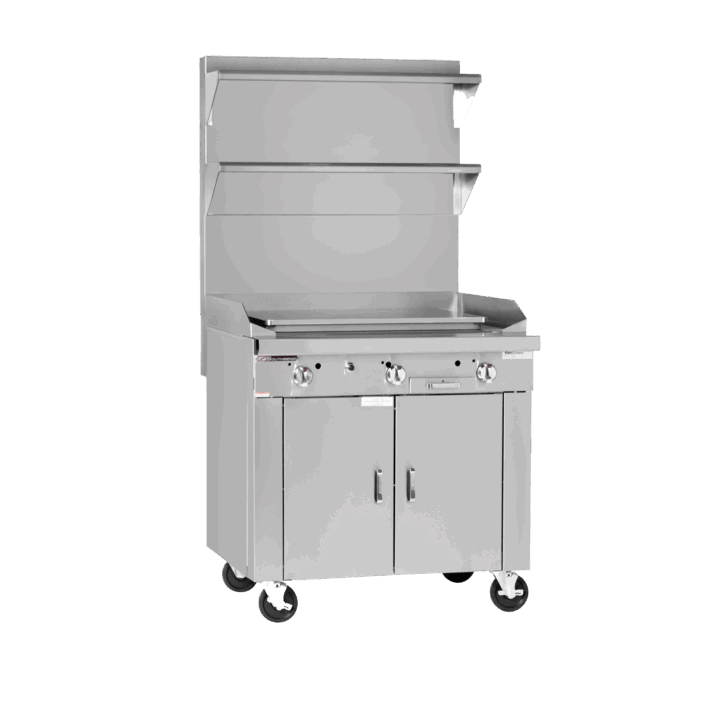

Platinum Sectional, Gas, 36″, 36″ Plancha, Modular – Propane, 48000 Total BTUs
Image Unavailable for selected Model

The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.

Product Features

  • 36" wide sectional range with 29-3/4" width plancha griddle available as a modular unit for mounting on countertop, refrigerated or freezer base
  • Three 15,500 BTU LP cast iron burners with three manual control knobs
  • Battery spark ignition
  • 1/2" thick reinforced griddle plate
  • Side and rear splashers
  • 5" deep front rail
  • Increased capacity removable stainless steel grease drawer
  • Stainless steel front, sides, rear and exterior bottom
  • Fully insulated lining and burner box
  • 1-1/4" front gas manifold and 1" rear gas connection
  • 5" high stainless steel flue riser

Options & Accessories

  • External pressure regulator
  • Cutouts in front rail for sauce pans
  • 7-1/4" deep front rail (to match old style sectional)
  • Square belly bar mounted on 7-1/4" deep front rail
  • Casters (front two casters lock)
  • Cable restraint kit (to restrict movement when on casters)
  • 24" or 36" high flue riser
  • Shelves on flue riser (one on 24" flue riser, one or two on 36" flue riser, 10" deep)
  • Tray or tubular shelving (12" deep)
  • Open-frame base with casters for battery
  • Extra-deep rear-extending flue riser
  • Stainless steel oven interior
  • Salamander or cheesemelter mounted on 36" high flue riser
  • Removable shelf inside cabinet
  • Electronic oven pilot ignition (no charge)
