The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.

• BUY NOW online with our Click & Brick dealers below
• For equipment guidance click Find Local Dealer
• For equipment demonstrations click Find Local Rep

Product Features

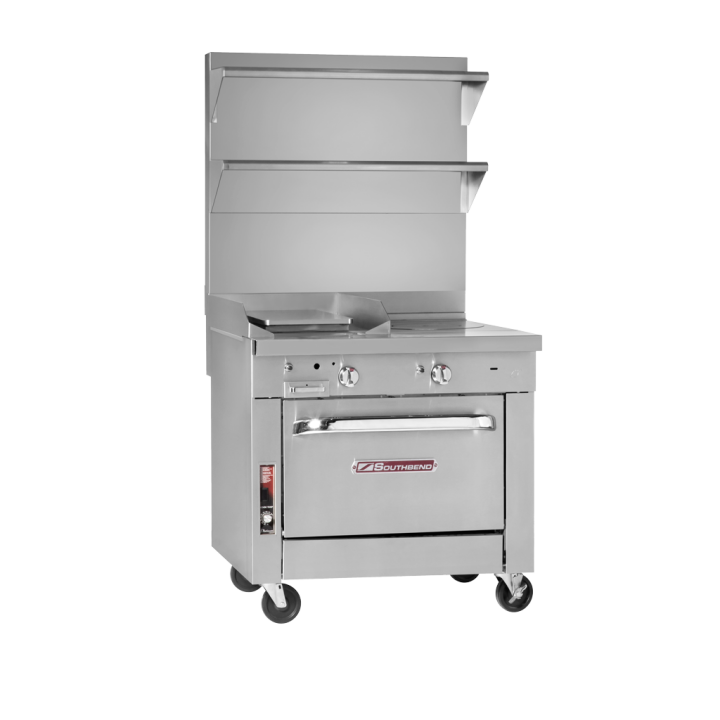

  • 32" wide sectional range with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
  • 9-1/4" deep front rail
  • Stainless steel front and sides
  • Fully insulated lining and burner box
  • 1-1/4" front gas manifold and 1" rear gas connection
  • 5" high stainless steel flue riser
  • Free battery-design assistance
  • Standard (1) year limited parts and labor warranty
16 " Open Top Features
  • Two Signature Pyromax 45,000 BTU NAT (45,000 BTU LP) patented clog-free burners
  • Removable, welded steel top grates
  • Removable drip tray
16" Hot Top Features
  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one high/low control knobs
  • Battery spark ignition
  • Removable steel plates with 700°F surface temperature on high setting
16" Charbroiler Features
  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one high/low control knobs
  • Removable cast iron grates with adjustable front-to-back slope that flip over for either 1/8" or 1/4" grid width
  • 600°F even surface temperature on high setting
  • Stainless steel burner radiants
  • Removable drip tray
16" Griddle Features
  • Two 20,000 BTU NAT (18,000 BTU LP) burners with one control knob
  • Manual "G", or Thermostatic "T" controls available
  • "Insta-On" thermostatic control of griddle surface temperature in the range 180°F to 400°F
  • Battery spark ignition
  • 1" thick griddle plate with side and rear splashers
  • Removable stainless steel grease drawer

Options & Accessories

  • External pressure regulator
  • Front rail options:
    • Cutouts in front rail for sauce pans
    • 7-1/4″ deep front rail (to match old style sectional)
    • Square belly bar mounted on 7-1/4″ deep front rail
  • Casters (front two casters lock)
  • Cable restraint kit (to restrict movement when on casters)
  • Stainless steel oven interior
  • 24″ or 36″ high flue riser
  • Shelves on flue riser (one on 24″ flue riser, one or two on 36″ flue riser, 10″ deep, shelves not available above charbroilers)
  • Tray or tubular shelving (shelves not available above charbroilers, 12″ deep)
  • Open-frame base with casters for battery
  • Extra-deep rear-extending flue riser
  • Salamander or cheesemelter mounted on 36″ high flue riser
  • Removable shelf inside cabinet
  • Grooved griddle surface (Griddle Only)
  • Chrome griddle surface (Griddle Only)
  • Plated fish grids (Charbroiler only)
  • Additional top configurations available. Contact factory for details
  • Removable, cast iron grate tops
  • Battery spark ignition for open tops
  • Electronic oven pilot ignition (no charge)
